| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | SUMA |
| मॉडल संख्या: | NFR45 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | $175-198 |
| प्रकार: | रोलर प्रकार | परिशुद्धता रेटिंग: | पी 0 |
|---|---|---|---|
| मुहरों का प्रकार: | खुला | मोटाई: | 63 मिमी |
| टोक़ क्षमता: | 1500Nm | आंतरिक दौड़ ओवररन: | 1000 rpm |
| आउटर रेस ओवररन: | 2400 आरपीएम | वज़न: | 4kg |
| जनम का आकार: | 8-130 मिमी | बाहरी दौड़ का आकार: | 37-300 मिमी |
| ओवररनिंग गति: | 1000-3600 आरपीएम | टॉर्क रेंज: | 20-34750N.M |
| मोटाई सीमा: | 20-180 मिमी | भार वर्ग: | 0.1-68 किग्रा |
| असर समर्थन: | स्टील / बॉल बेयरिंग पर स्टील | ||
| प्रमुखता देना: | One Way Clutch Bearing 1500Nm torque,One Way Clutch Bearing 1000RPM,NFR45 One Way Clutch Bearing |
||
| Attribute | Value |
|---|---|
| Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works, Energy & Mining |
| Type | ROLLER TYPE |
| Precision Rating | P0 |
| Seals Type | OPEN |
| Product Name | Backstopping Clutch Freewheel Bearings |
| Thickness | 63mm |
| Torque Capacity | 1500Nm |
| Inner Race Overruns | 1000RPM |
| Outer Race Overruns | 2400RPM |
| Weight | 4kg |

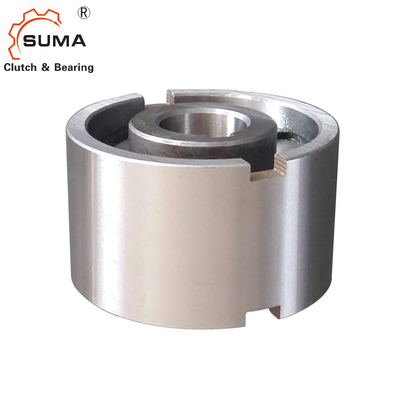

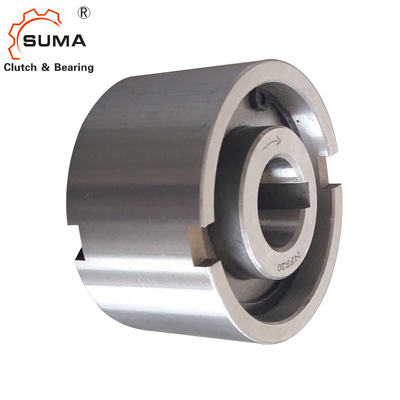

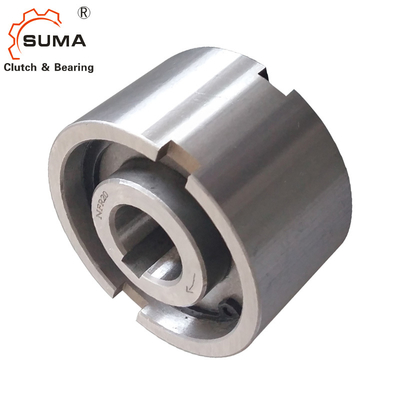

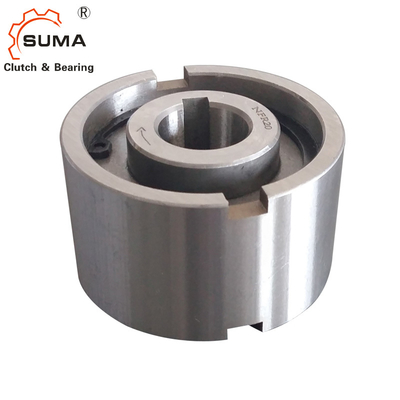

The NFR Series One Way Backstopping Clutch is a bearing-supported roller type freewheel without any sealing. Lubrication and sealing must be provided by the installation, with standard lubrication being oil.

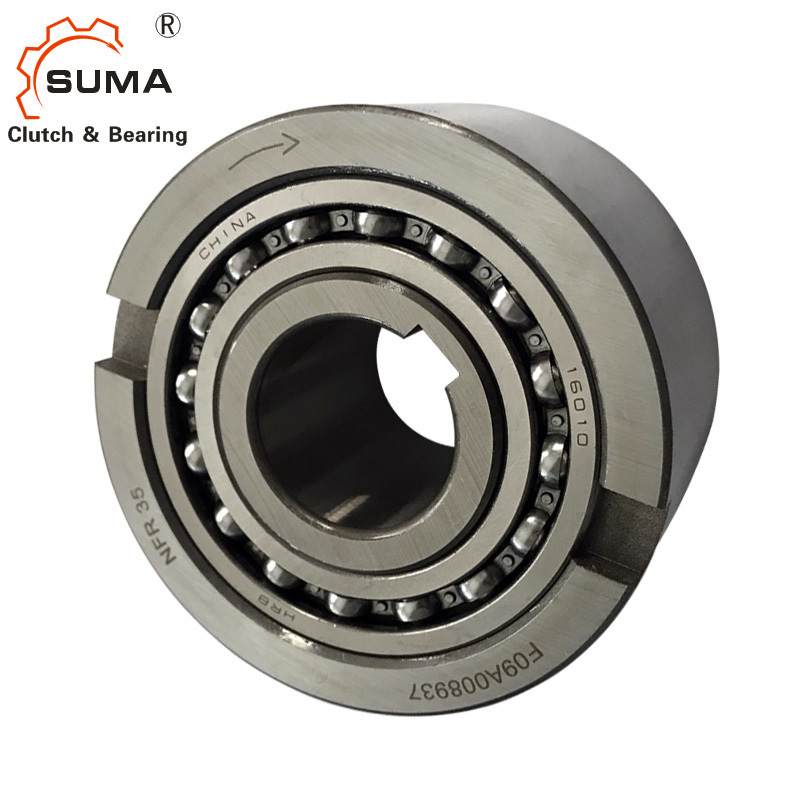

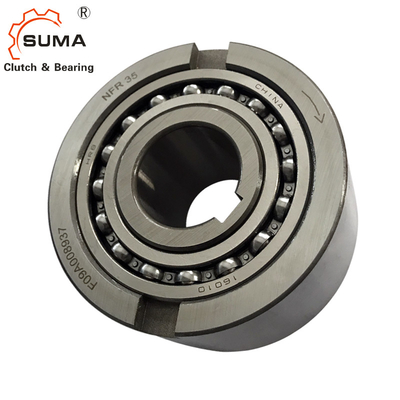

For sizes 8 to 20 units, steel on steel bearing supports the inner race. Above size 20, two 160...Series ball bearings are used, providing higher overrunning speed capacity.
The inner race is keyed to the shaft. The outer race has a positive n6 tolerance for a press fit in a housing to H7. Additional side notches enable positive torque transmission. The housing must be strong enough to prevent expansion after assembly.
| Model | Torque (N.m) | Overrunning Speeds (rpm) | Dimension (mm) | Weight (Kg) |
|---|---|---|---|---|
| NFR8-NFR130 | 20-34750 | Inner Race: 1000-250 Outer Race: 1000-3600 |
Bore Size: 8-130 Outer Race Size: 37-300 Thickness: 20-180 |
0.1-68 |
1) Tmax = 2 × TKN
2) Inner race overruns
3) Outer race overruns
It is highly encouraged to ask for samples for quality check.
