| उत्पत्ति के प्लेस: | जियांगसु, चीन |
| ब्रांड नाम: | SUMA |
| मॉडल संख्या: | BWC-13261 BWC-13251 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|
| प्रकार: | छिड़काव | परिशुद्धता रेटिंग: | पी 0 |
|---|---|---|---|
| मुहरों का प्रकार: | खुला | मोटाई: | 15.4 मिमी |
| टोक़ क्षमता: | 789 /1580NM | सामग्री: | GCR15 |
| कठोरता: | HRC58-62 | व्यास के अंदर: | 103.231 मिमी |
| घेरे के बाहर: | 119.944 मिमी | अधिकतम चौड़ाई: | 15.4 मिमी |
| रेटेड ड्रैग टॉर्क: | 789nm (80.5kgf.m) | सतह की कठोरता: | एचआरसी 60-62 |
| कठोरता की गहराई: | 0.6मिमी मिनट | कोर कठोरता: | HRC35-45 |
| सतह खुरदरापन: | 22Cla मैक्स | ||
| प्रमुखता देना: | Sprag type one way clutch bearing,15.4mm one way clutch bearing,GCr15 one way clutch bearing |
||
| Attribute | Value |
|---|---|
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining |
| Type | sprag |
| Precision Rating | P0 |
| Seals Type | OPEN |
| Thickness | 15.4mm |
| Torque Capacity | 789 /1580Nm |
| Material | GCr15 |
| Hardness | HRC58-62 |
| Delivery | 1-2 Days |

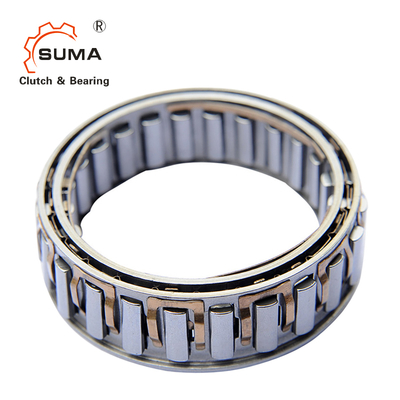

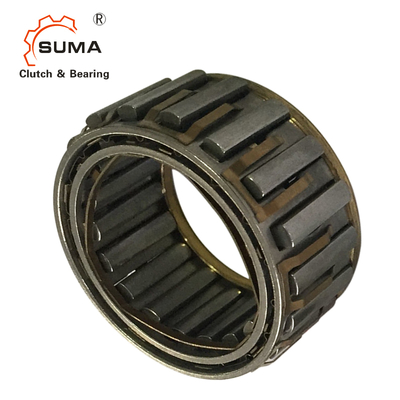

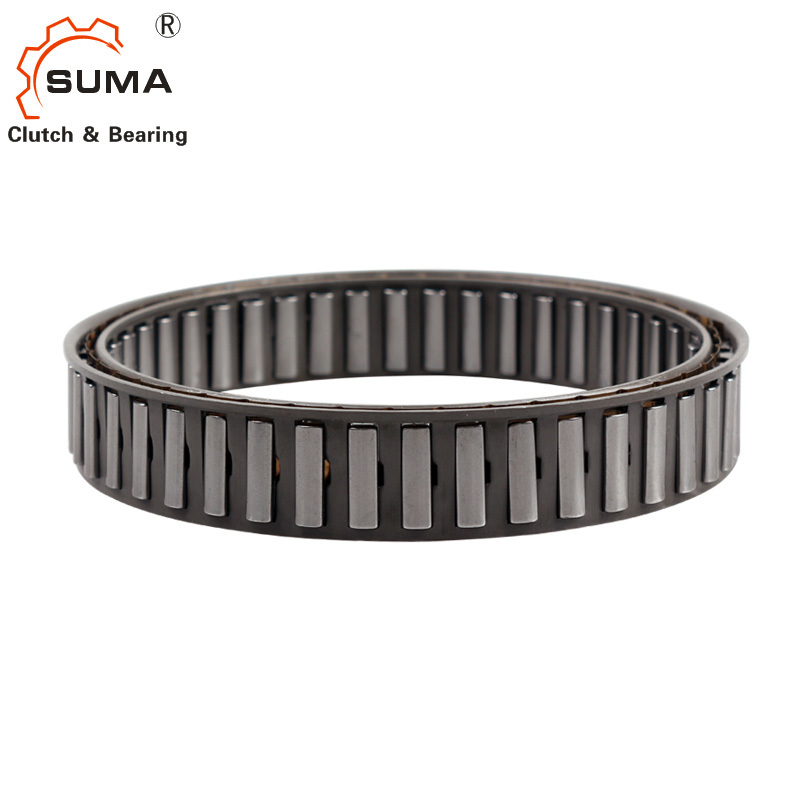

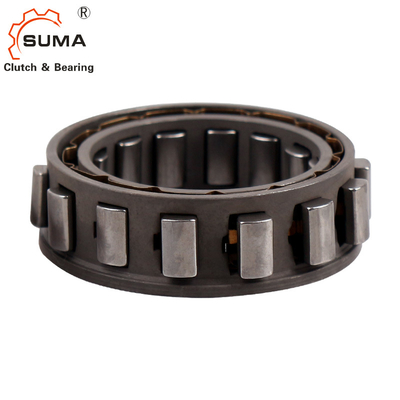

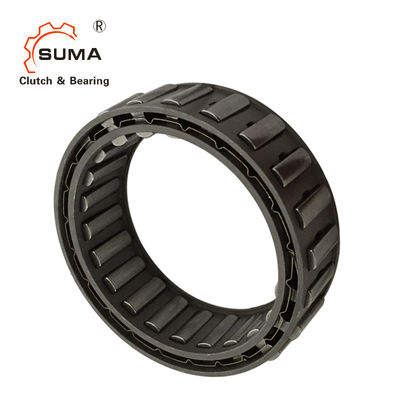

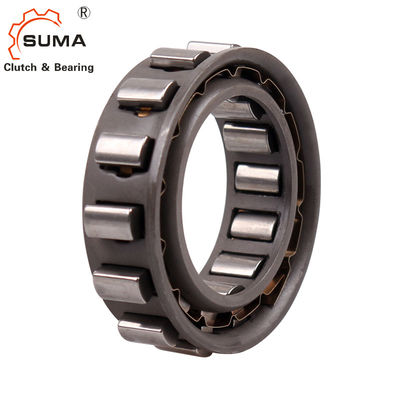

The BWC-13261/BWC-13251 is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The X type version-N accepts all types of lubricants currently used in power transmission equipment.
The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure proper freewheel function. Alternatively, races can be made in case hardened steel shafts or housings with the following specifications:
| Type | Inside Shaft Diameter | Outside Shaft Diameter | Maximum Width | Rated Drag Torque (N.M / kgf.m) |
|---|---|---|---|---|
| x-135006 | 54.572 +0.008-0.005 | 71.211 ±0.013 | 20.5 | 799 (81.5) |
| BW-13231 | 54.765 | 71.427 | 13.5 | 402 (41.0) |
| BW-13214 | 15.9 | 363 (37.0) | ||
| BW-13167 | 15.9 | 569 (58.0) | ||
| BW-13209 | 57.760 | 74.427 | 13.5 | 554 (56.5) |
| BWC-13239B | 15.9 | 711 (72.5) | ||
| BW-13238 | 21.0 | 1050 (107) | ||
| X-133401 | 59.538 | 76.200 | 25.4 | 1350 (138) |
| BW-13243 | 72.217 | 88.882 | 13.5 | 637 (65.0) |
| BWC-13168 | 21.0 | 1510 (154) | ||
| BWC-13229 | 21.6 | 1325 (135) | ||
| BW-13255 | 26.7 | 1920 (196) | ||
| X-133614C | 83.596 ±0.013 | 102.555 | 25.4 | 3040 (310) |
| X-133402 | 85.776 | 104.775 | 25.4 | 3090 (315) |
| BWC-13251 | 103.231 | 119.944 | 15.4 | 789 (80.5) |
| BWC-13261 | 15.4 | 1580 (161) | ||
| X-133639 | 103.231 | 122.230 | 25.4 | 4410 (450) |
| X-133403 | 123.881 | 142.880 | 25.4 | 5740 (585) |
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in producing various cam clutches, one way bearings, one way clutches, backstop clutches, overrunning clutches and needle roller bearings with high technology.
Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet
Small items: In stock
Medium Items: 10-15 Days
Big items: 20-25 Days
