Name: FE422Z Sprag Type One Way Clutch Bearing 12mm Bore 22mm Outer Dia
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: FE422Z
Price: 2.40 USD
Availability: InStock

होम उत्पाद एक तरह से क्लच असर

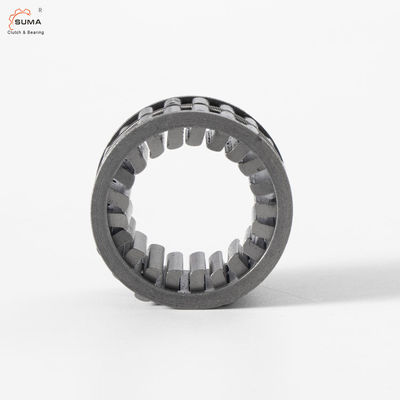

FE422Z Sprag Type One Way Clutch Bearing 12mm Bore 22mm Outer Dia

उत्पाद विवरण:

उत्पत्ति के प्लेस:	जियांगसु, चीन
ब्रांड नाम:	SUMA
मॉडल संख्या:	FE422Z

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	2
मूल्य:	$2.40-3.50

संपर्क करें

विस्तृत उत्पाद विवरण

परिशुद्धता रेटिंग:	पी 0	मुहरों का प्रकार:	खुला
प्रकार:	स्प्रैग, फ्रीव्हील क्लच	सामग्री:	क्रोम इस्पात
टॉर्कः:	44 एन.एम.	व्यर्थ की गतिशीलता:	5300 आरपीएम
बोर व्यास:	12 मिमी	बहरी घेरा:	22 मिमी
टॉर्क Fe422:	48 एन.एम.	टॉर्क Fe422 z:	44 एन.एम.
टॉर्क Fe422 Z2:	21 एन.एम.	निष्क्रिय गति Fe422:	5300 आरपीएम
निष्क्रिय गति Fe422 z:	5300 आरपीएम	निष्क्रिय गति Fe422 Z2:	5300 आरपीएम
अधिकतम आरपीएम:	10000 आरपीएम
प्रमुखता देना:	12mm bore one way clutch bearing , 22mm outer diameter sprag clutch bearing , FE422Z one way clutch bearing

FE422Z FE 422 Z Sprag Type One Way Clutch Bearing FE 442 Z2

FE series Freewheel-clutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction.

Applications

Indexing elements: Change from oscillating to intermittent rotary motion.
Backstops: Prevent self-reversing due to load condition when the machine is not activated.
Overrunning clutches: Maintain driven unit activated during slowdown, or switch to higher speed in two-speed operation.

Lubrication

Lubrication is critical for maximum freewheel clutch life and reduced drag. Refer to our Lubrication Selection Table for proper selection.

Note: Clutches (except sealed series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS, and FKN...-2RS) are shipped rust-protected but not lubricated.

Dimensions and Specifications

dL	DL	Part Number	Torque M [N.m]	Part Number	Torque M [N.m]	Part Number	Torque M [N.m]	Idling speed nmax [RPM]
2	10					FE 410 Z2	0.3	10,000
80	88	FE 488	914	FE 488 Z	788			1,300

Product Features

We offer a wide range of freewheel-clutches with varying design features and dimensions to meet requirements for torque, indexing frequency, idling speed, and environment.

For optimal operation, the supporting equipment around the clutch must be built accurately and of high quality. We provide support units or complete assemblies as needed.

Product Images
