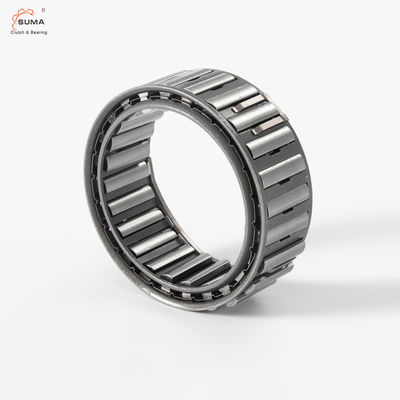

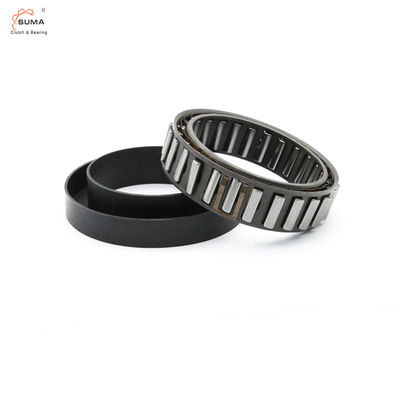

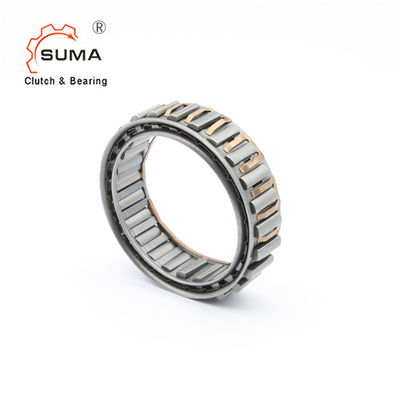

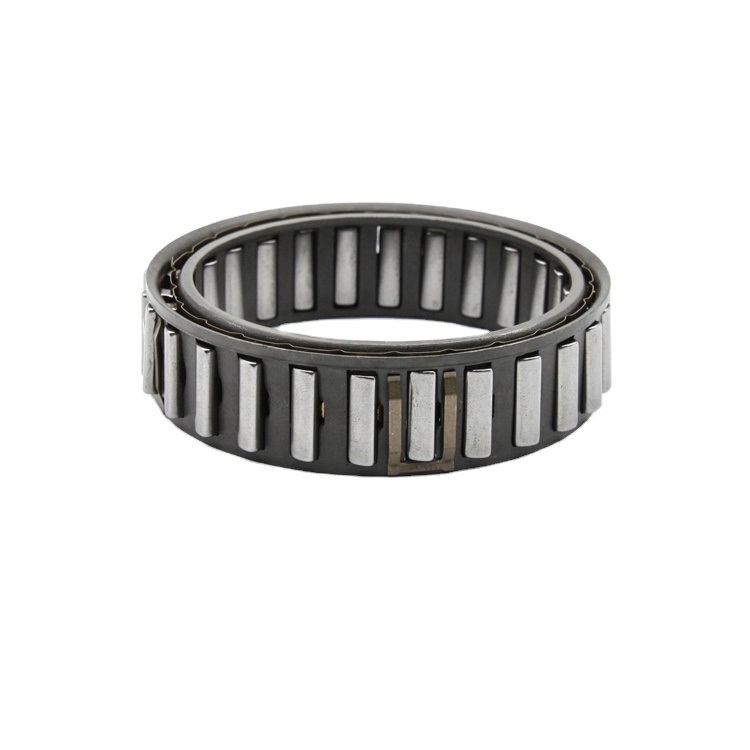

P0 Precision Sprag Overrunning Clutch with Gcr15 Sprag Material and 10mm Thickness One Way Bearing

उत्पाद विवरण:

उत्पत्ति के प्लेस:	चीन
ब्रांड नाम:	SUMA
मॉडल संख्या:	डीसी 5776 बी 4 सी

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	2
मूल्य:	$6.70-8.60

संपर्क करें

विस्तृत उत्पाद विवरण

परिशुद्धता रेटिंग:	पी 0	मुहरों का प्रकार:	खुला
प्रकार:	छिड़काव	स्प्रैग सामग्री:	GCR15
मोटाई:	10 मिमी	स्प्रैग मात्रा:	12 टुकड़े
टोक़ क्षमता:	63nm	बहरी घेरा:	74.42
जनम का आकार:	57.76	वज़न:	0.03 किग्रा
ओवररनिंग स्पीड (बाहरी):	750	ओवररनिंग स्पीड (आंतरिक):	1500
सतह की कठोरता:	एचआरसी 60-62	कोर कठोरता:	HRC35-45
सतह खुरदरापन:	22CLA
प्रमुखता देना:	P0 Precision Sprag Overrunning Clutch , Gcr15 Sprag Material One Way Bearing , 10mm Thickness Sprag Clutch

DC5776A DC5776B DC5776C Sprag Overrunning Clutch One Way Bearing DC 5776B 4C

Product Description

Technical Specifications

Item	DC5776-N
Outer Diameter	74.42
Bore Size	57.76
Nominal Torque	63
Weight	0.03kg
Sprags Quantity	12
Overrunning Speed (outer race)	750
Overrunning Speed (inner race)	1500
Port	Shanghai; Ningbo
Delivery Time	1-2 Days

Product Features

Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version-N accepts all types of lubricants currently used in power transmission equipment.

Tolerance Specifications

The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly.

Hardness Requirements

Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0.6 mm minimum. Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races: 0.007 mm for 25 mm width.

Available Sizes

Type	Drag Torque (NM)	Size (mm)	Number of Clips
DC2222G	50	22.225
DC2776	95	27.762
DC3034	99	30.34
DC3175(3C)	127	31.75	3
DC3809A	220	38.092
DC4127(3C)	179	41.275	3
DC4445A	290	44.45
DC4972(4C)	245	49.721	4
DC5476A	420	54.765
DC5476A(4C)	420	54.765	4
DC5476B(4C)	615	54.765	4
DC5476C(4C)	792	54.765	4
DC5776A	483	57.76
DC6334B	645	63.34
DC7221(5C)	540	72.217	5
DC7221B	1023	72.217
DC7221B(5C)	1023	72.217	5
DC7969C(5C)	1630	79.698	5
DC8334C	1645	83.34
DC8729A	1000	87.29
DC10323A(3C) *	1290	103.231 **	3
DC12334C *	3840	123.34 **
DC12388C(11C)	3900	123.881	11
