| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | SUMA |
| प्रमाणन: | ISO SGS |
| मॉडल संख्या: | आरएसबीडब्ल्यू50 |
| न्यूनतम आदेश मात्रा: | 1 |
|---|---|
| मूल्य: | USD80-USD95PER PIECE |
| पैकेजिंग विवरण: | कार्टन का डिब्बा |
| प्रसव के समय: | 7-10 दिन |
| भुगतान शर्तें: | एल / सी, डी / ए, डी / पी, टी / टी, वेस्टर्न यूनियन, पेपैल |
| आपूर्ति की क्षमता: | प्रति माह 1000pcs |
| प्रोडक्ट का नाम: | बैकस्टॉप क्लच RSBW50 | सामग्री: | GCr15 असर स्टील |
|---|---|---|---|
| आकार: | 45*132*52मिमी | टोक़ क्षमता: | 1295 एनएम |
| घूर्णन गति: | 300rpm | इकाई का वज़न: | 4.6 किग्रा |
| गारंटी: | 1 वर्ष | OEM: | स्वीकार करना |
| प्रमुखता देना: | RSBW50 backstop clutch bearing,bucket elevator sprag bearing,one way backstop bearing |
||

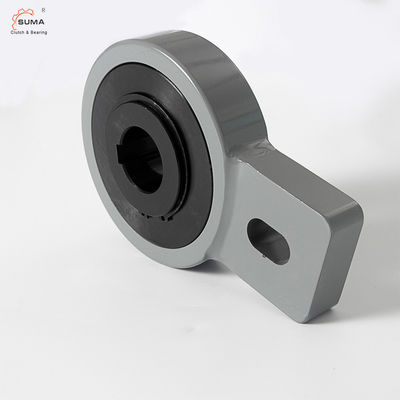

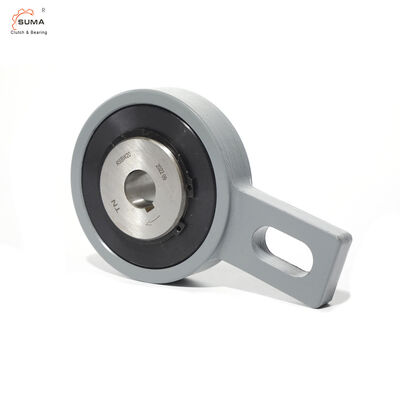

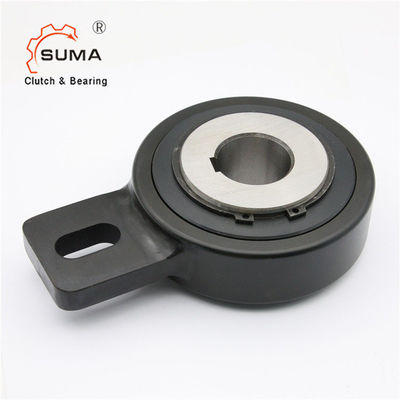

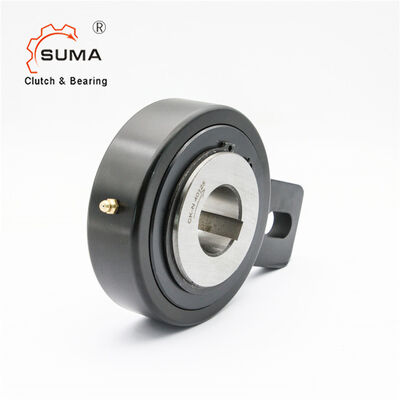

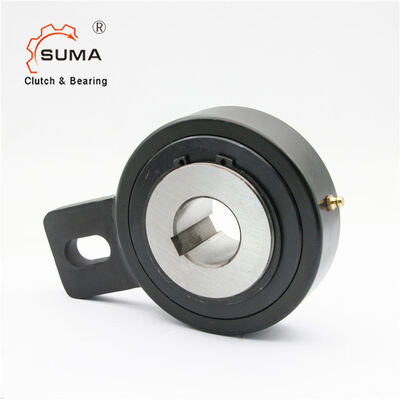

RSBW50 RSBW 50 One Way Sprag Bearing Backstop Clutch for Bucket Elevator
Features
Application:
Primarily used as a backstop. This type provide a high torque capacity with a minimum space requirement.
Structure:
Type RSBW is a DC sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected O rings.
Technical Datas
| Product name | Sprag type freewheel clutches |
| Model | RSBW45 / RSBW50 / RSBW55 |
| Torque capacity | 1295Nm |
| Overrunning speeds | 300 min -1 |
| Inner diameter | 45mm / 50mm/ 55mm |
| Outer diameter | 132mm |
| Thickness | 52mm |
| Weight | 4.6kg |
| Application | Fishinery machinery, Reducer, household appliances |
| Package | Carton Box |
| Payment terms | TT, L/C, D/A, D/P, Western Union, Paypal |
| Delivery time | 7-10 Days |
Dimensions and Capacities
| Type | Size | Overrunning Speeds | Weight | |||||||||
|
|
dH7 | TKN1) | nimax | D | L 1 | F | E | B | N | L | bH11 | |
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| 20 | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 | |
| 25 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.6 | |
| 30 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.5 | |
| 35M | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 | |
| 35 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.4 | |
| 40 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.6 | |
| 45 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.5 | |
| 50 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.5 | |
| 55 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.4 | |
| 60 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.5 | |
| 70 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.4 | |
| 80 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.9 | |
| 90 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.8 | |
Pictures
FAQ
Q: How do you pack the goods?
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
